TOWER PARTS

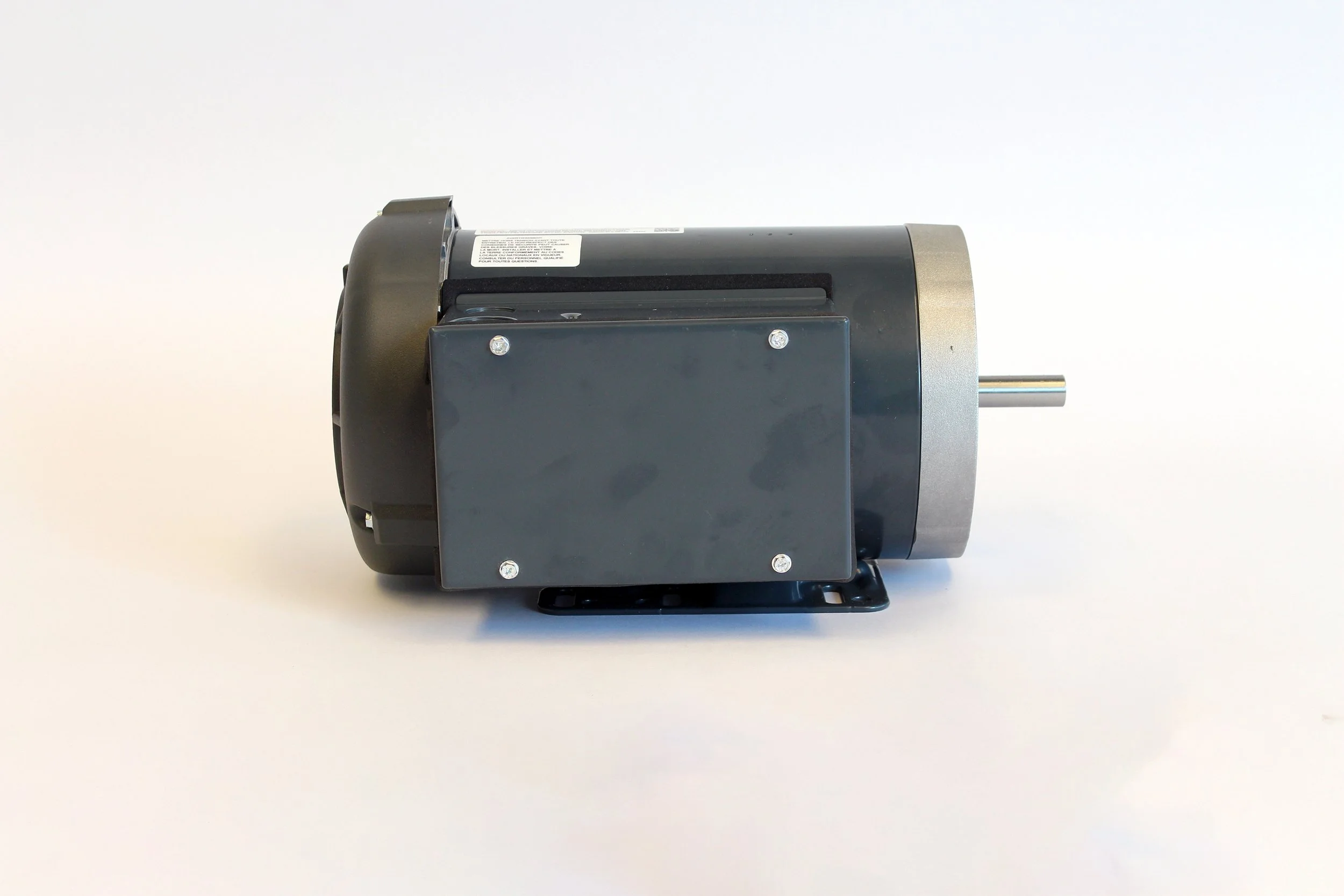

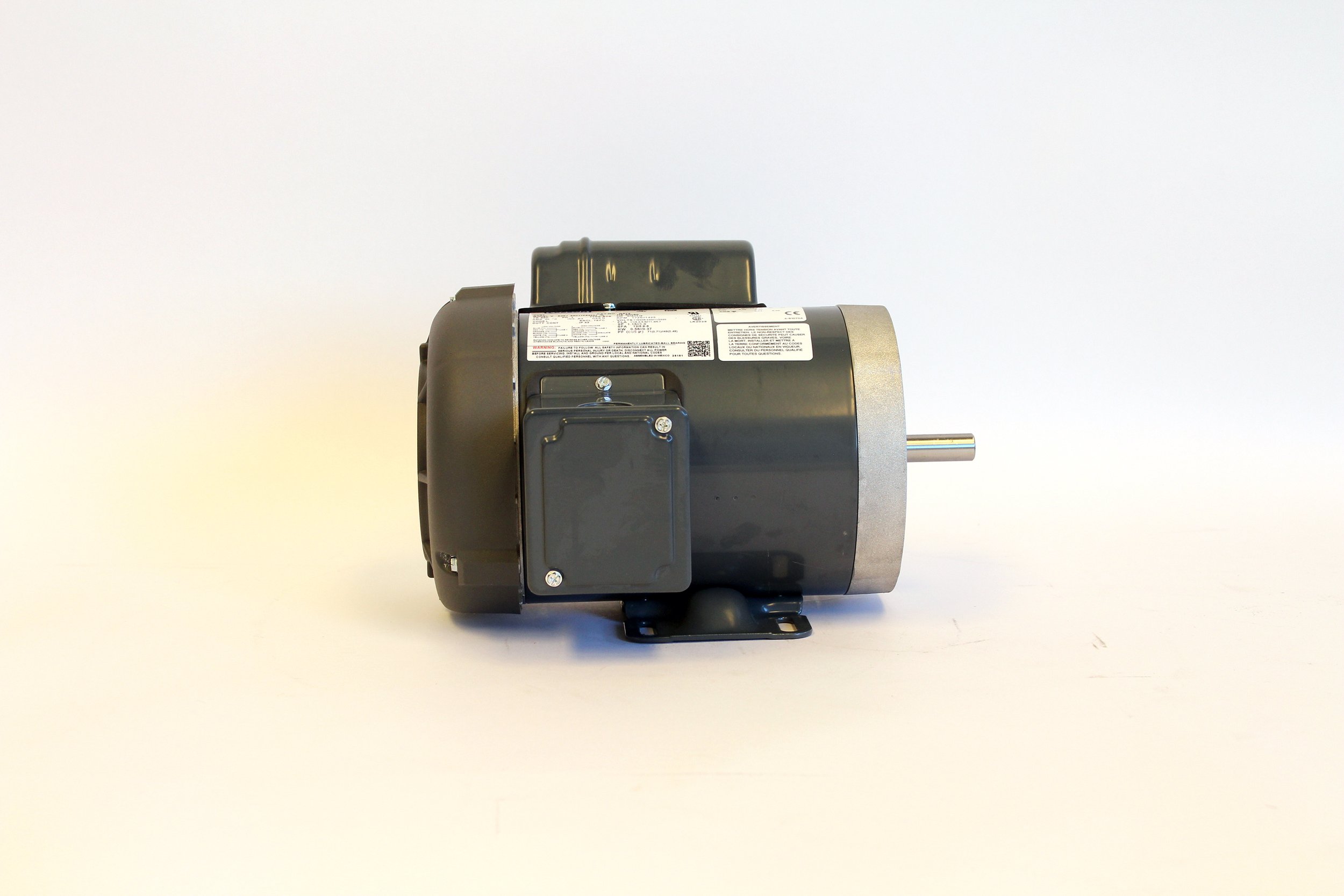

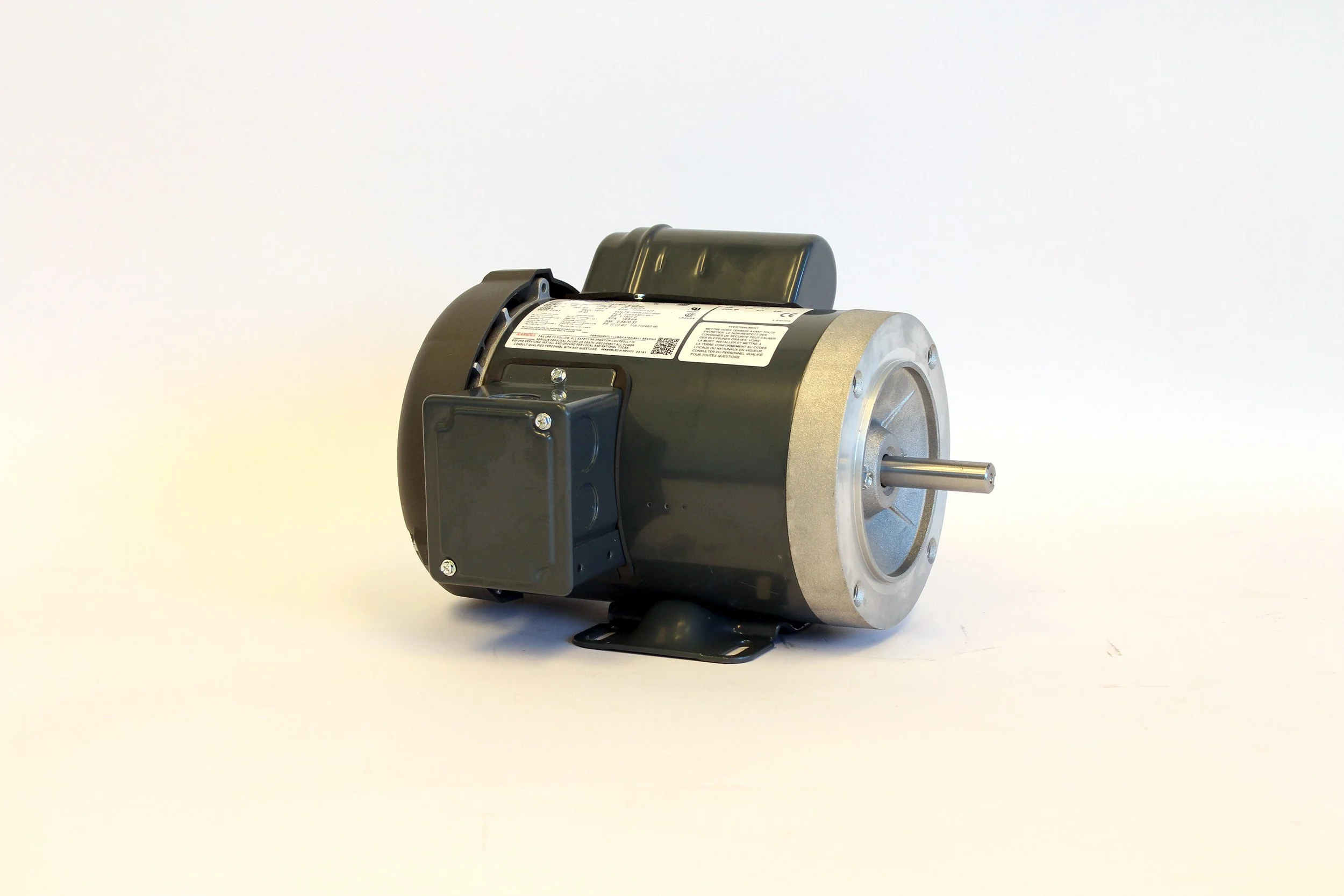

¾ HP Marathon Motor
Part Number: G572
Horsepower: 3/4 HP (0.56 kW)
Speed: 1725 RPM (60 Hz) / 1425 RPM (50 Hz)
Voltage: 115/208-230 V (Single Phase)
Current: 11 / 5.4–5.5 A
Frame Size: 56C (C-Face with a removable rigid base)
Enclosure: TEFC (IP43 rated)

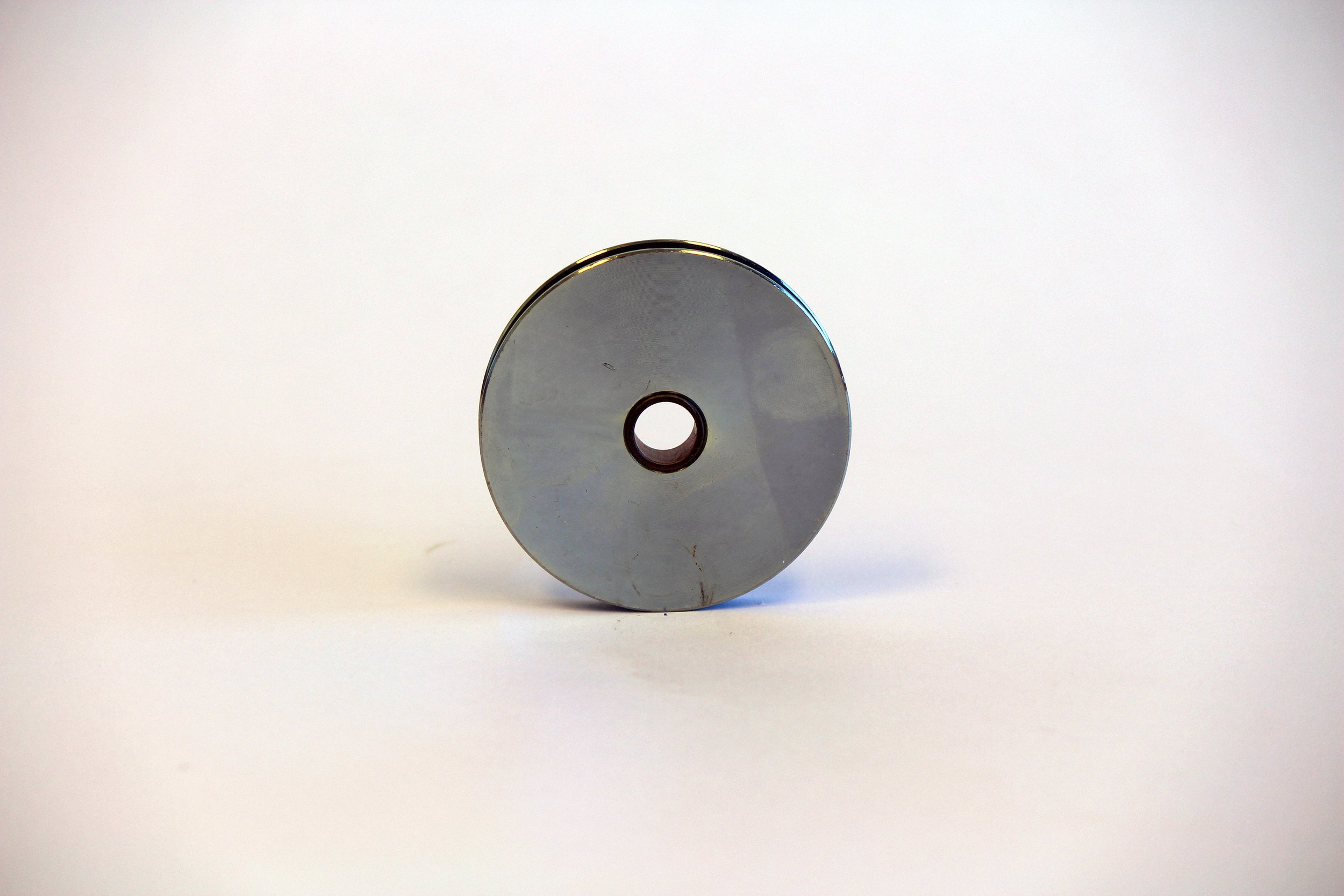

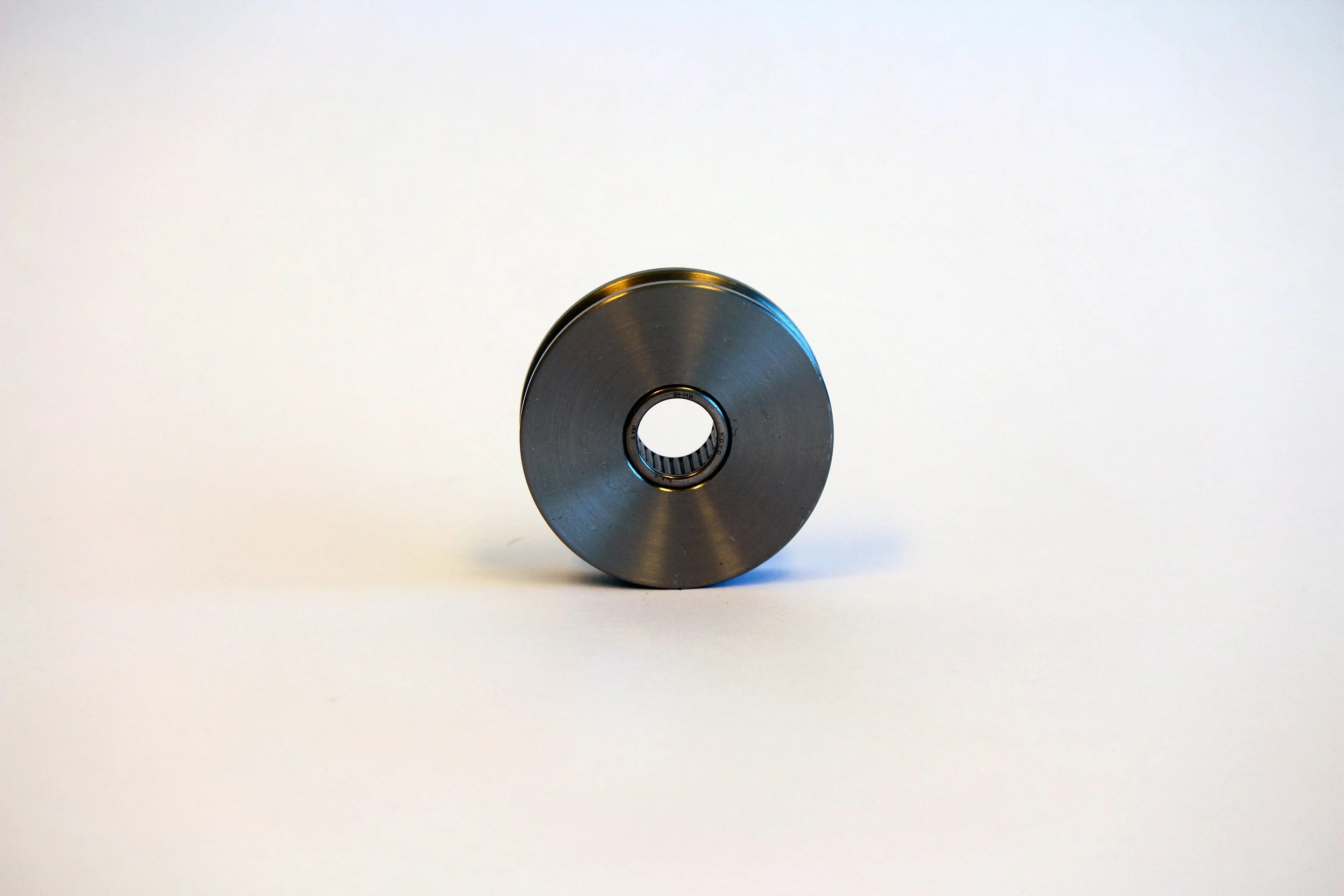

3.5” Sheave with Inner Race

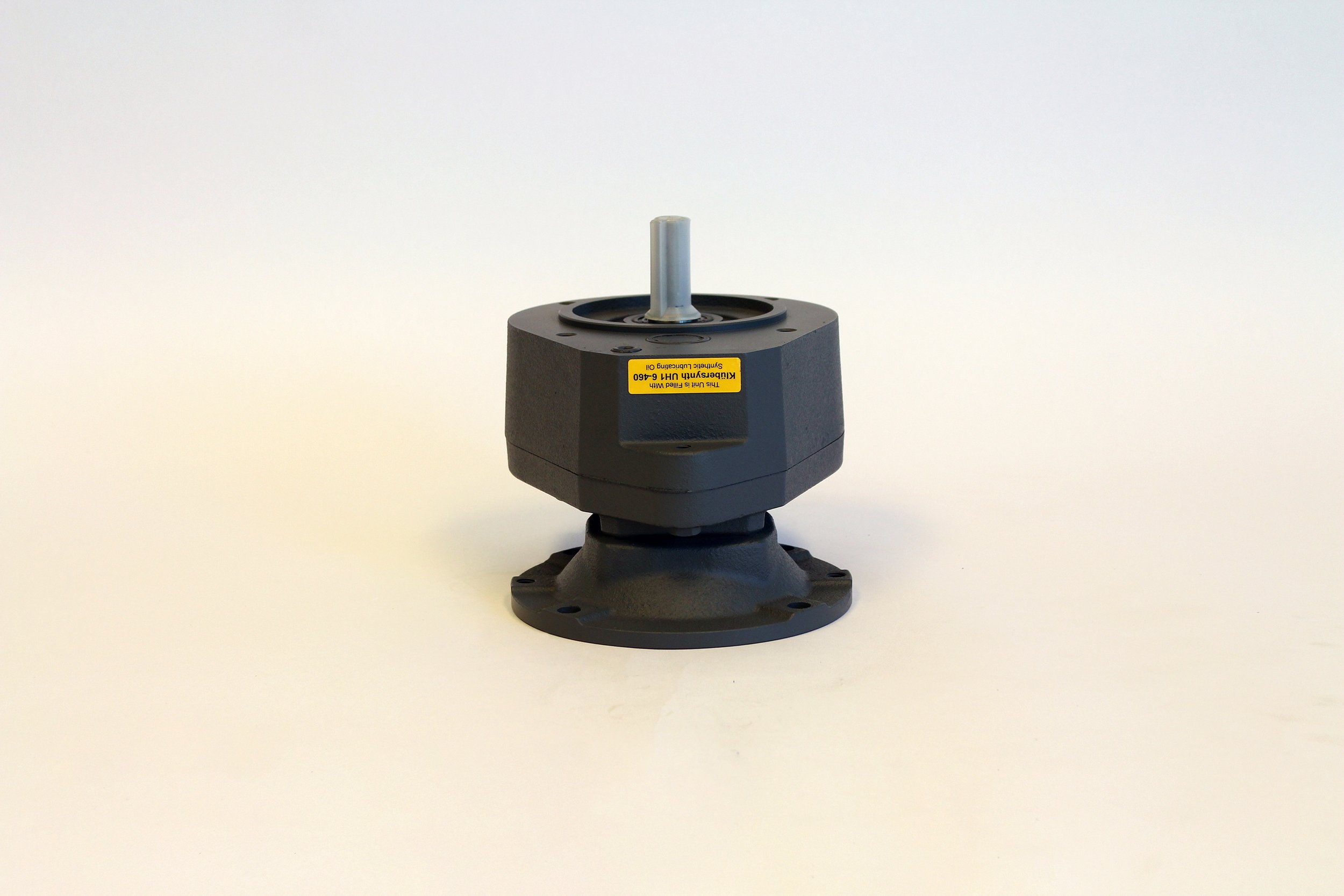

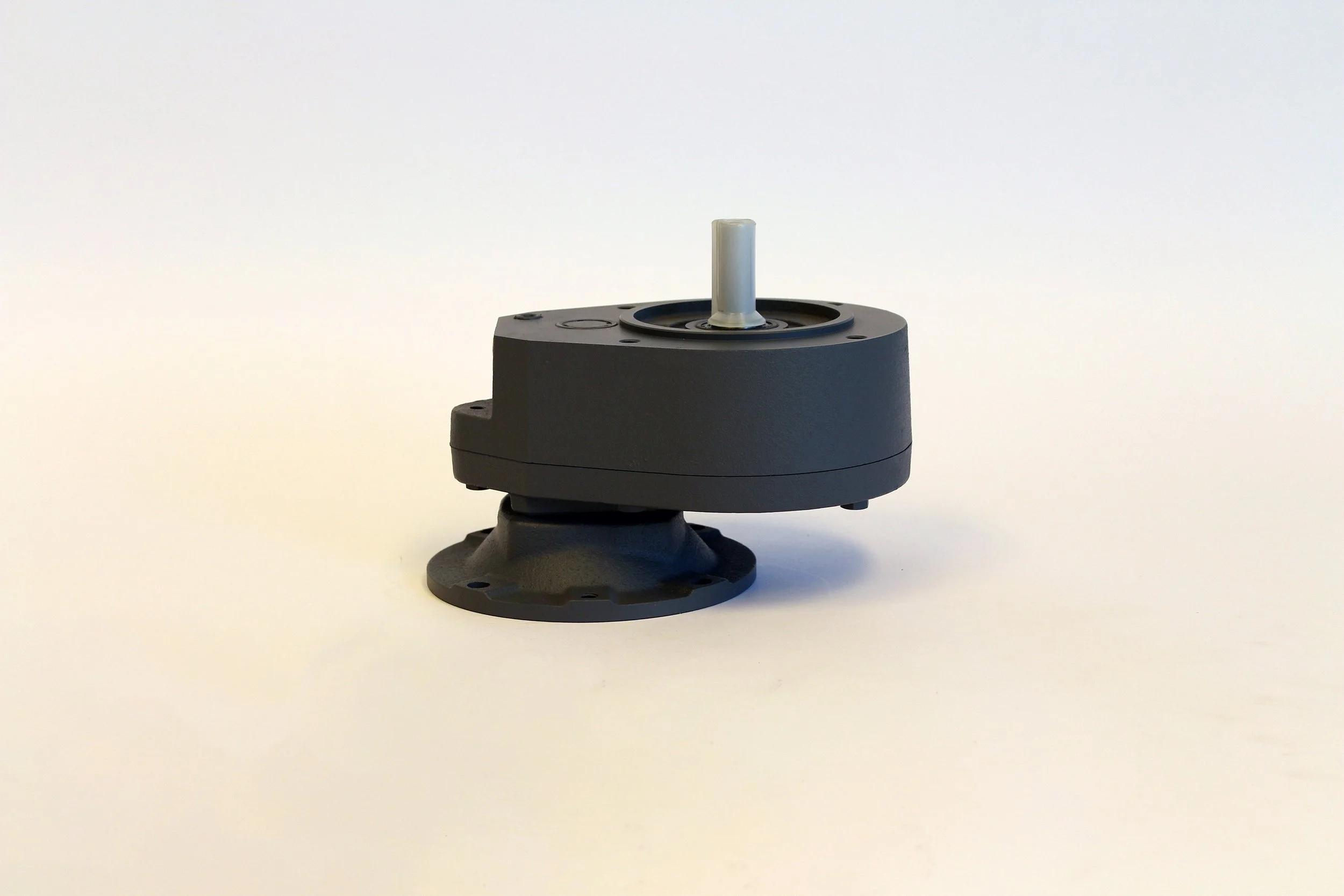

5:1 Reducer

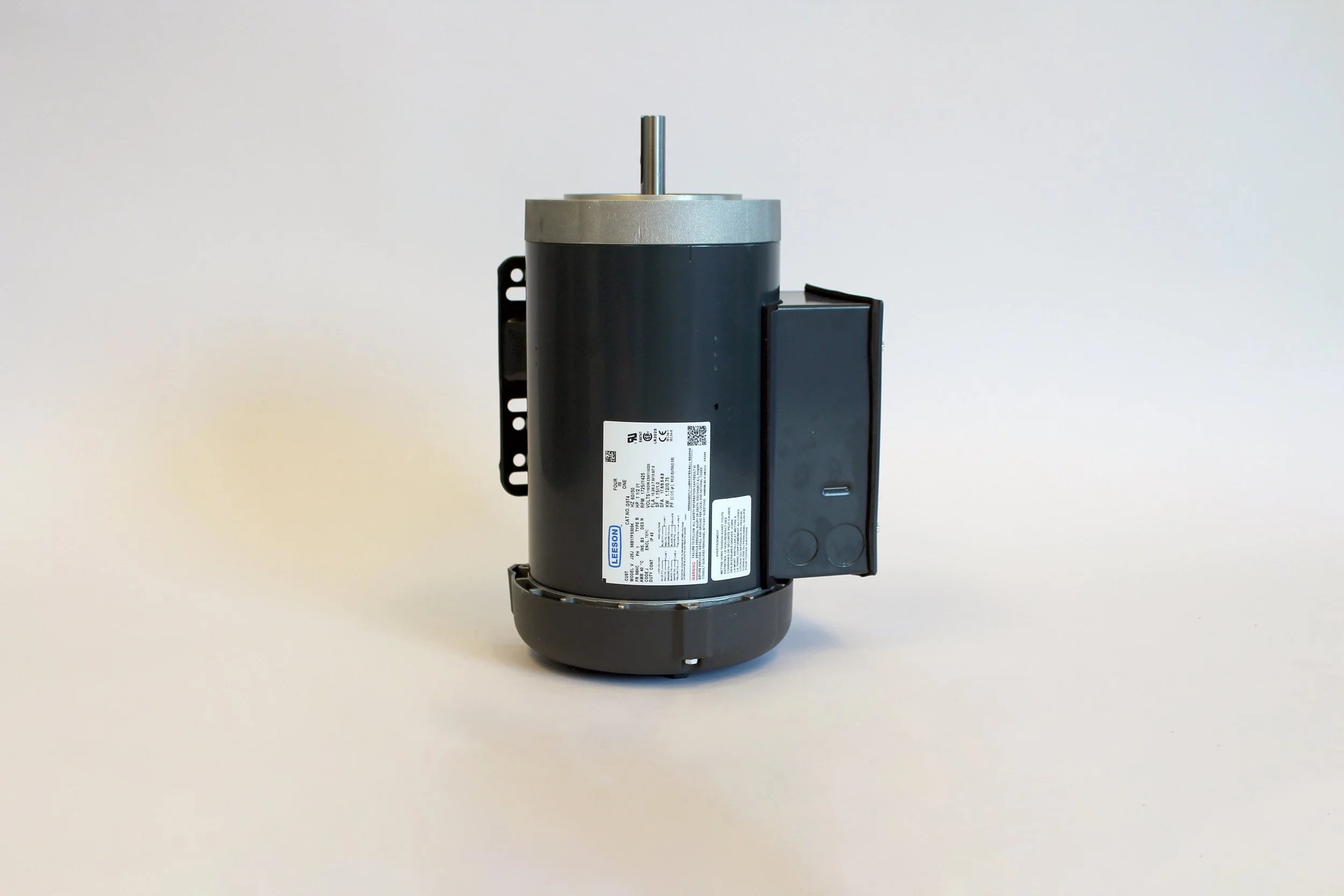

1.5HP Leeson/Marathon Motor
Part Number: G574
Horsepower: 1.5 HP (1.1 kW)
Speed: 1725 RPM (60 Hz) / 1425 RPM (50 Hz)
Voltage: 115/208-230V (Dual Voltage, 1 Phase)
Frame Size: 56HC NEMA Frame with C-Face and removable rigid base
Enclosure: Totally Enclosed Fan Cooled (TEFC, IP43 rated)
Current: 15.2 / 8.2–7.6 A

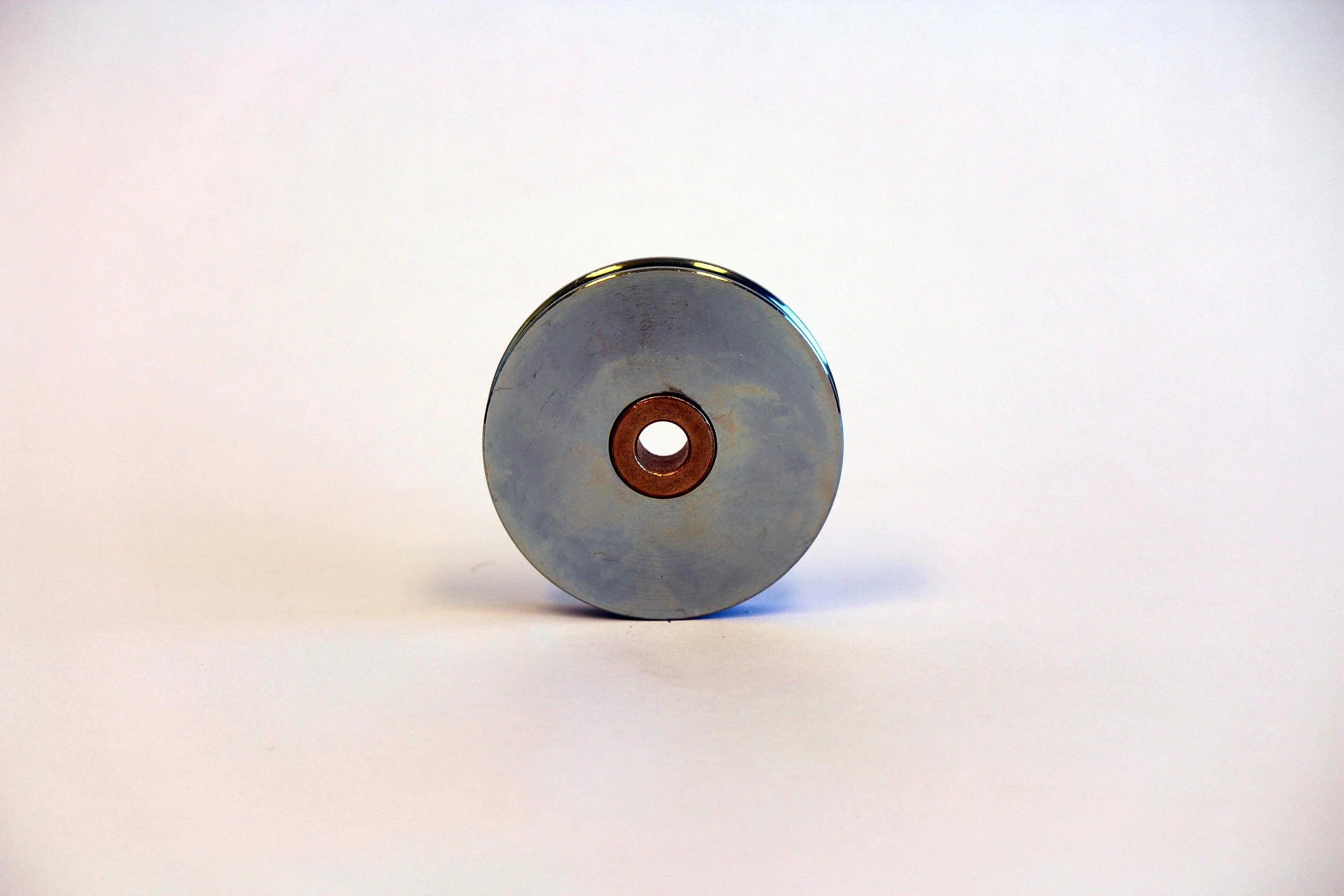

3.5” Sheave with Bronze Bushing

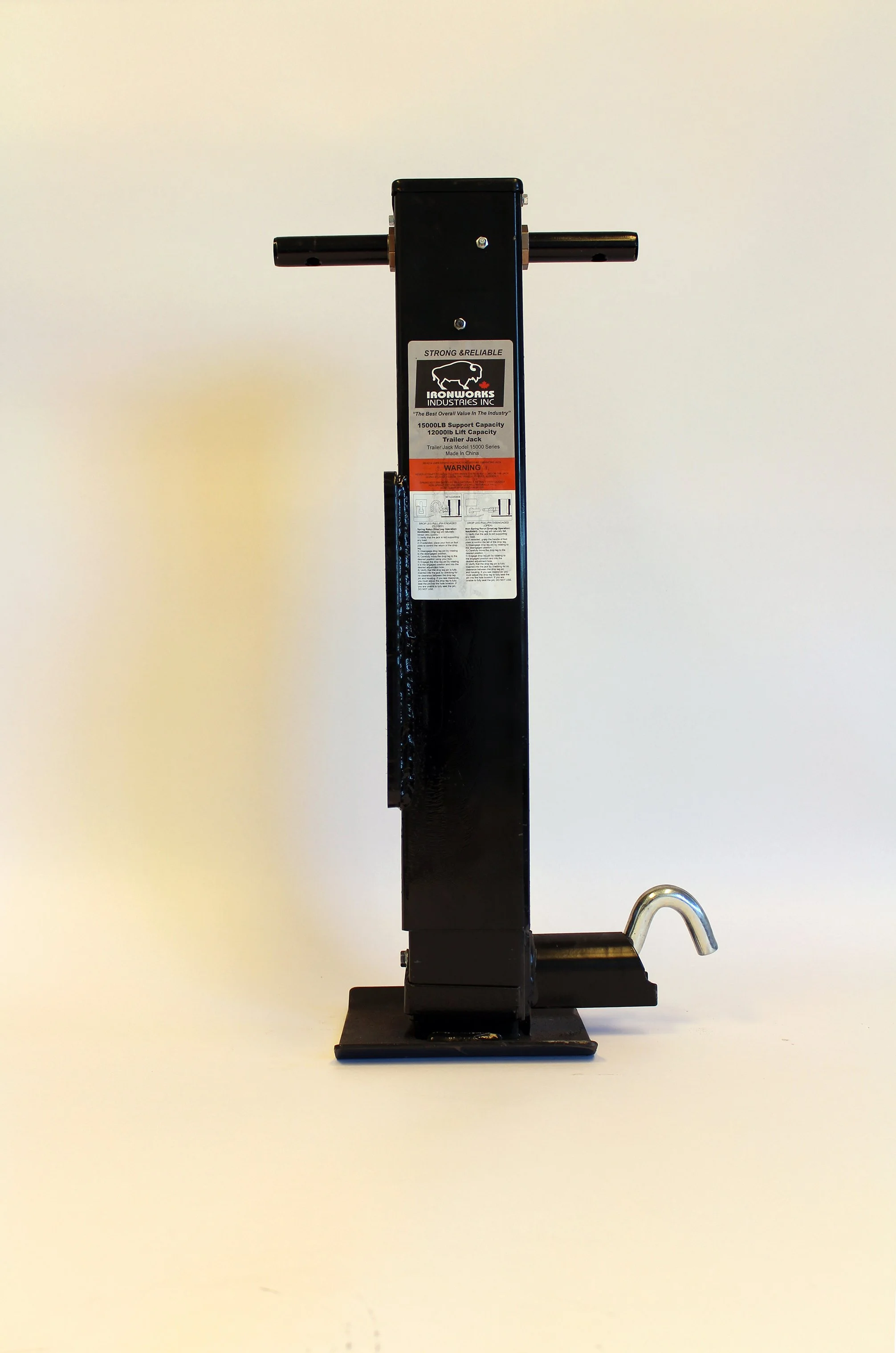

7K Outrigger Jacks
SWL: 7,000LBS
Lift: 29″
Retracted: 26″
Width: 2 1/2″ Square
Weight: 23LBS
Finish: Black Paint and Zinc Plated
SWL: 12,000LBS
Lift: 25″
Retracted: 28″
Width: 4″ Square
Weight: 56LBS
Finish: Black Paint
Tail Light Grommet

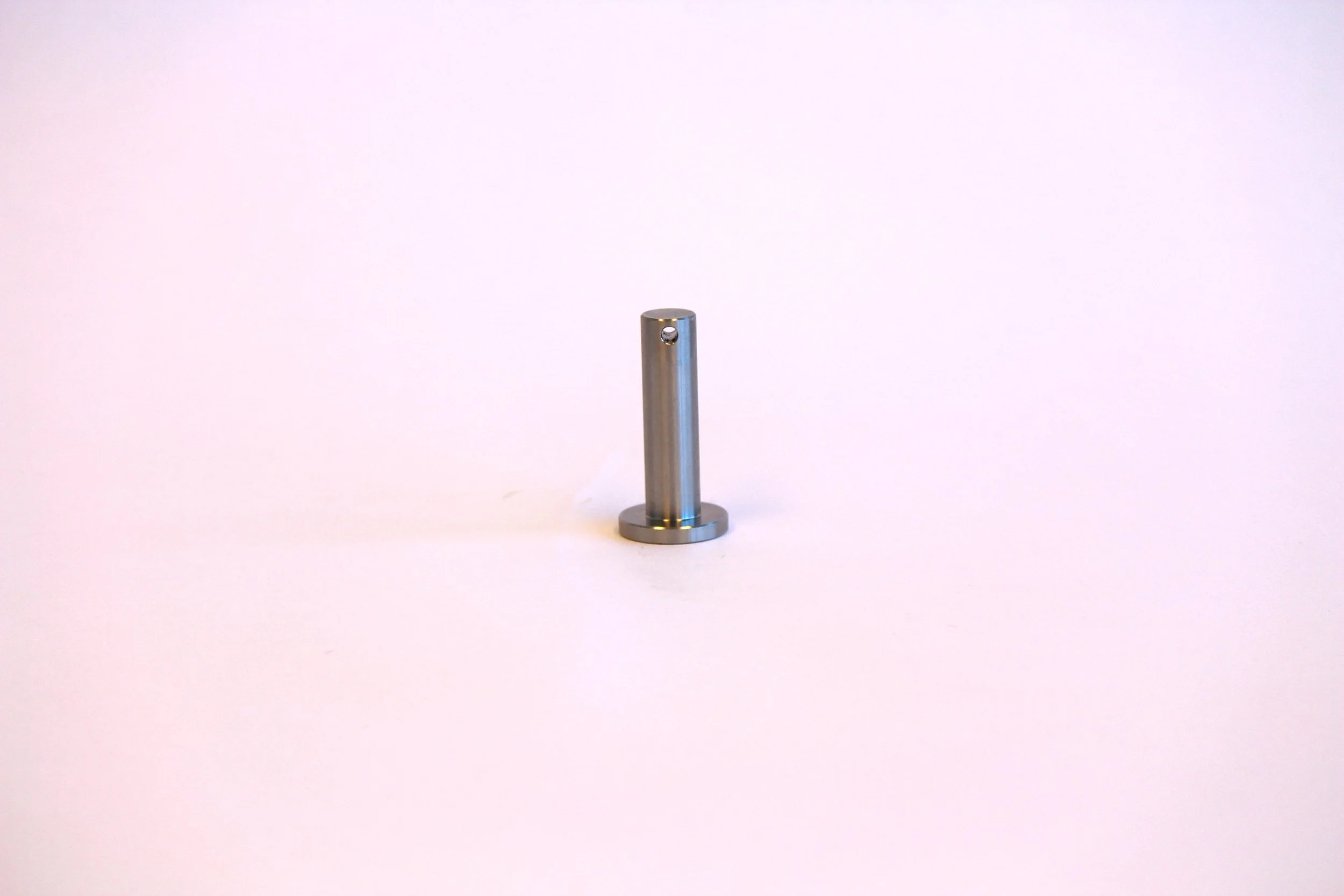

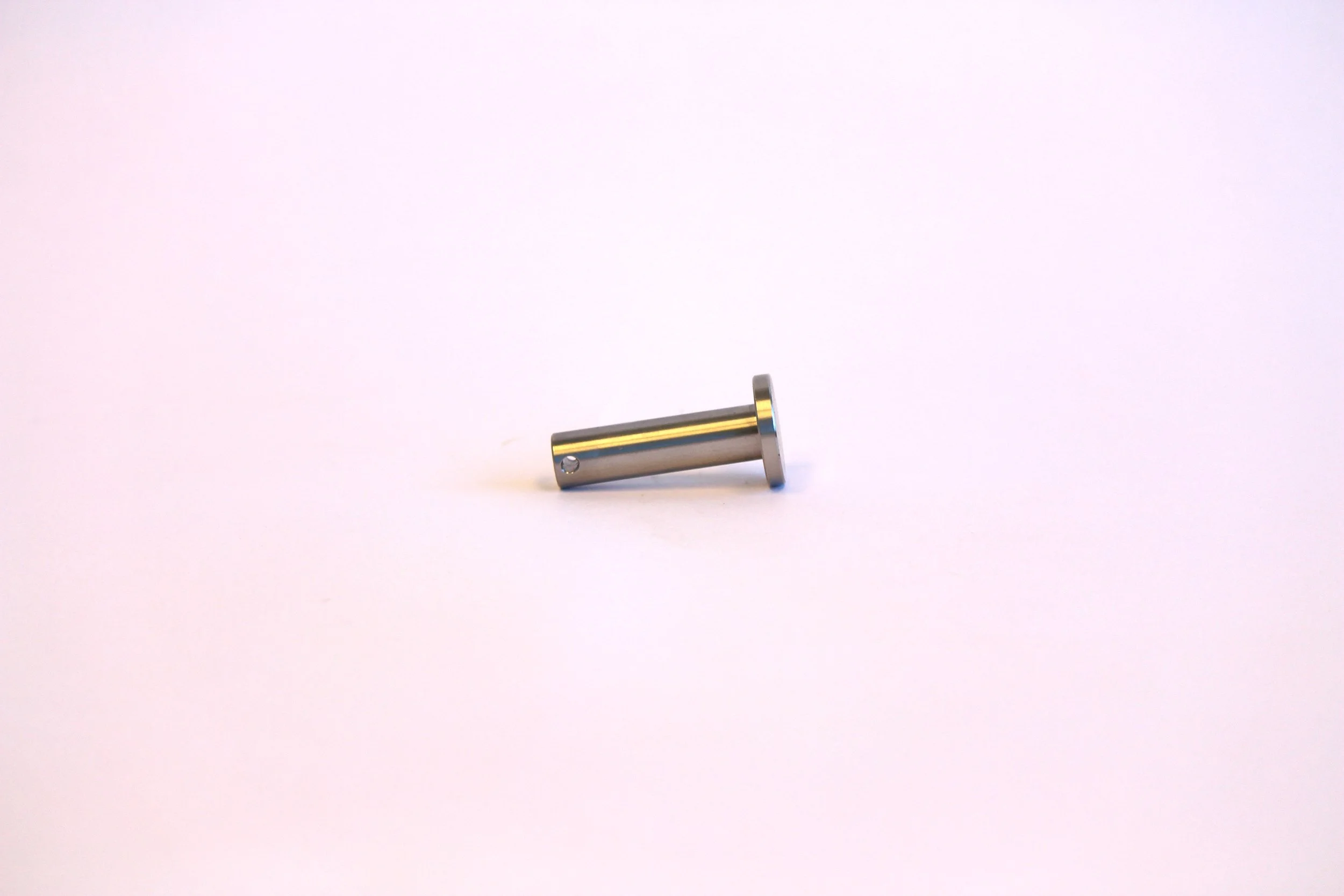

2.5” Pin for Sheave
CTI Part Number: FLXPN25
Custom Sheave Pin
2.5” Length
1.25” Base
For the 3.5” Sheave only (P/N: FLXSHV35IR)
3” Sheave with Bronze Bushing
12K Jack
4-3/4 cu. ft Aluminum Trailer Tongue Box
Inside Dimensions (in.): 32 x 17L x 14W x 19H
Outside Dimensions (in.): 33 x 18L x 15-3/4W x 21H
Storage Capacity: 4-3/4 cu. ft
2 Keys included
Flush mounts the 60 series lamps
Provides lamps with additional shock absorbency to extend lamp life
Mounts in up to 0.25 maximum thick plate

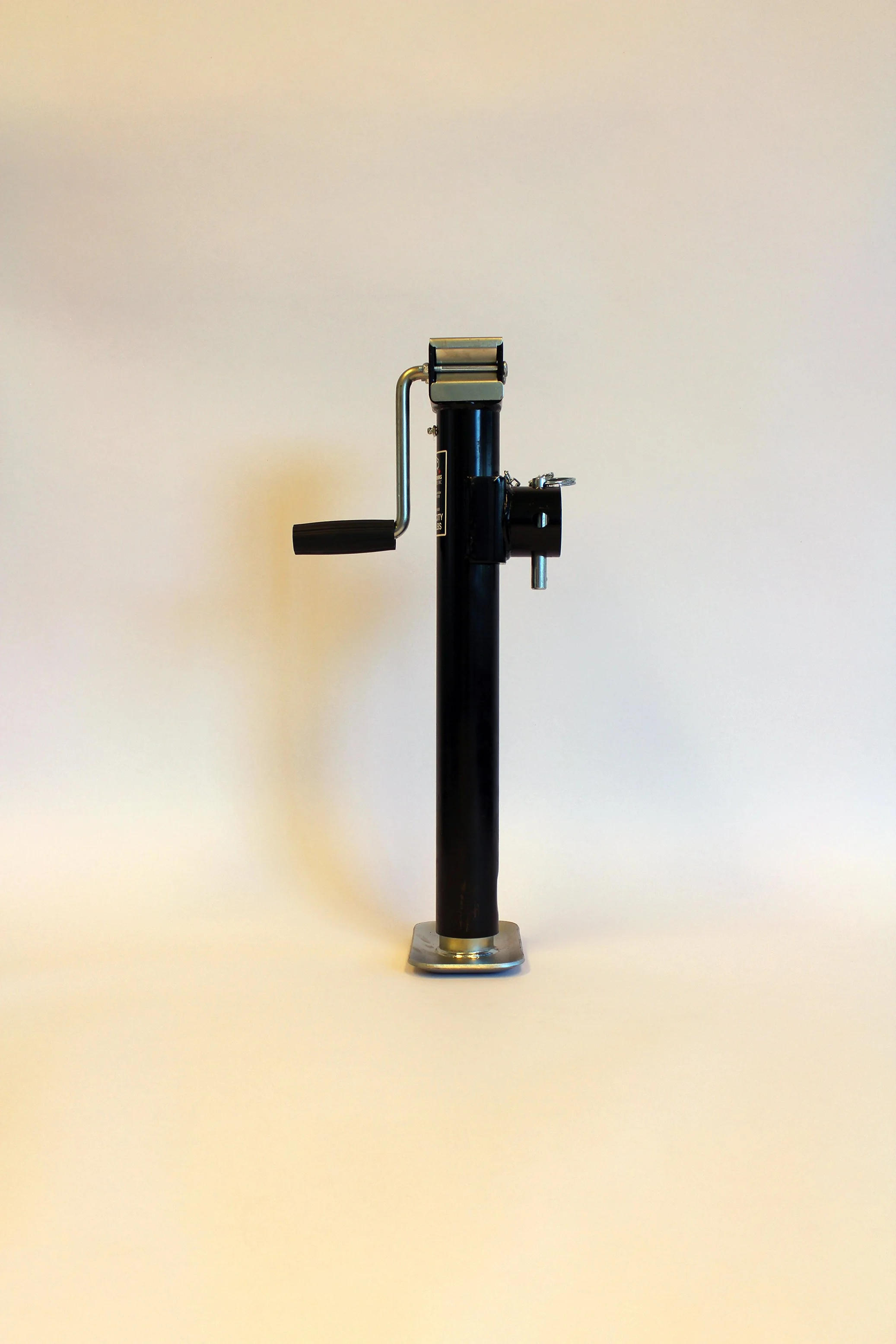

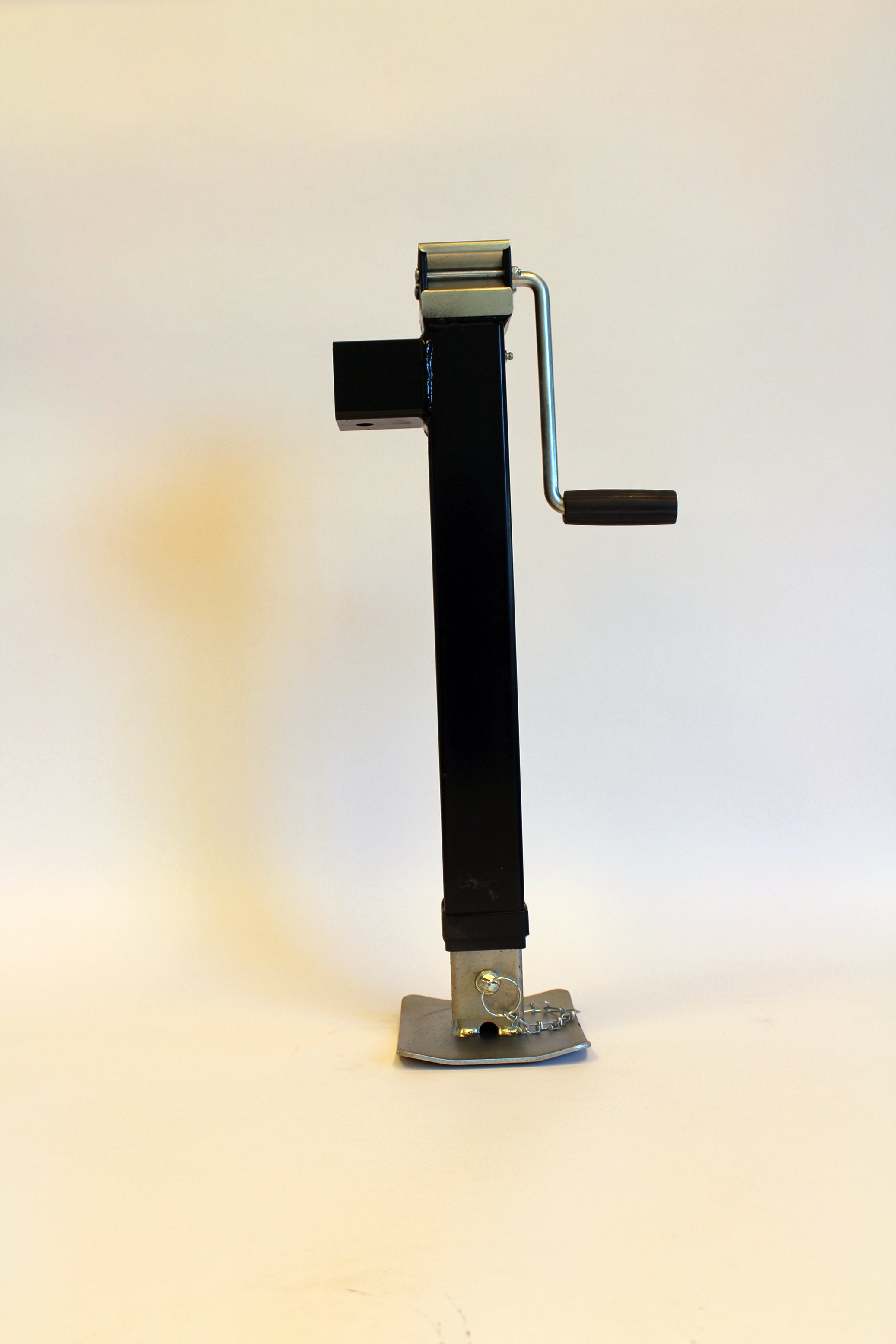

2,500LB Stabilizer Jack
Part Number: IW2500-15SWPM
SWL: 2,500LBS
Lift: 15″
Retracted: 22″
Bracket Height: 15-3/4″
Width: 2 1/4″
Weight: 16LBS
Finish: Black Paint and Zinc Plated

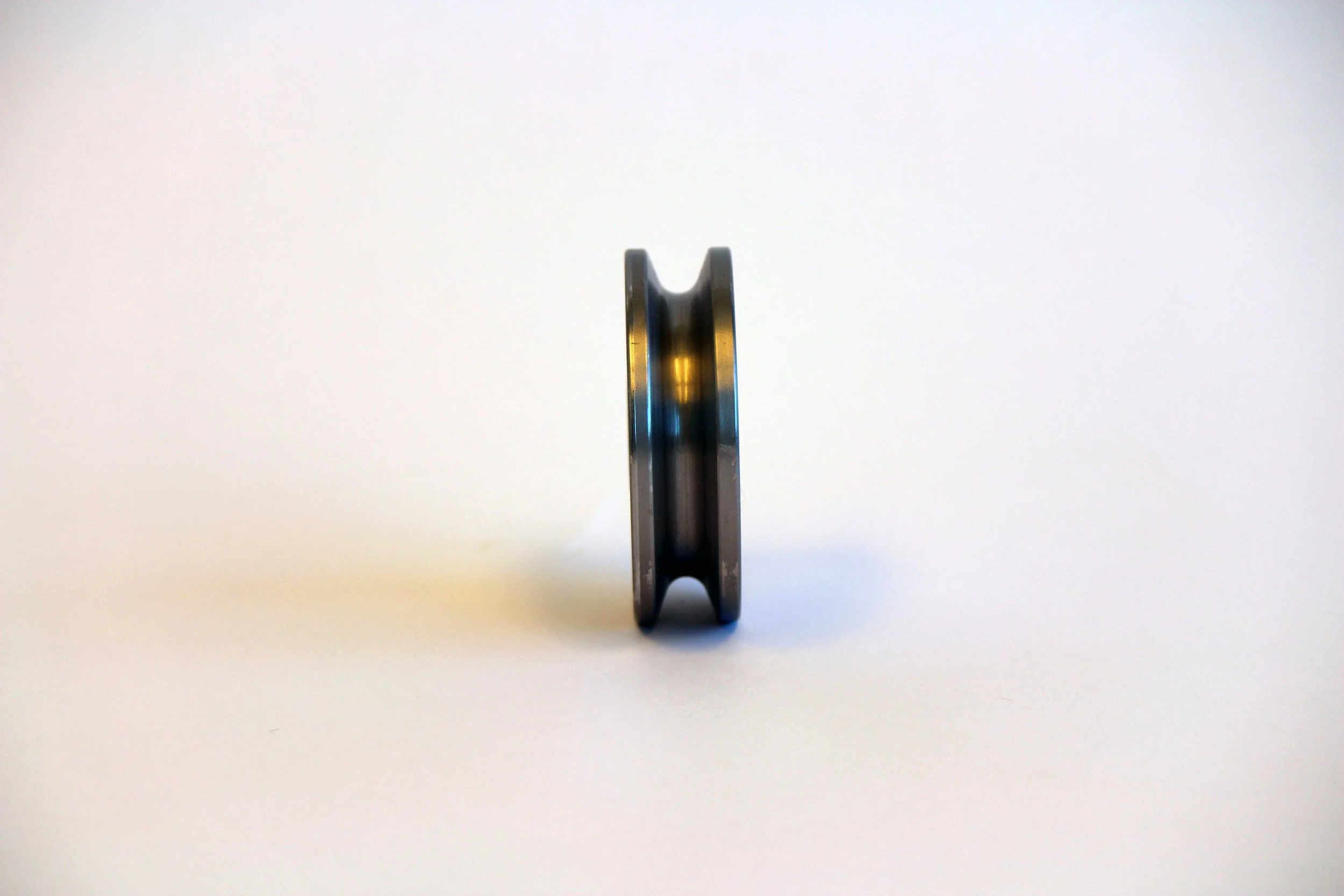

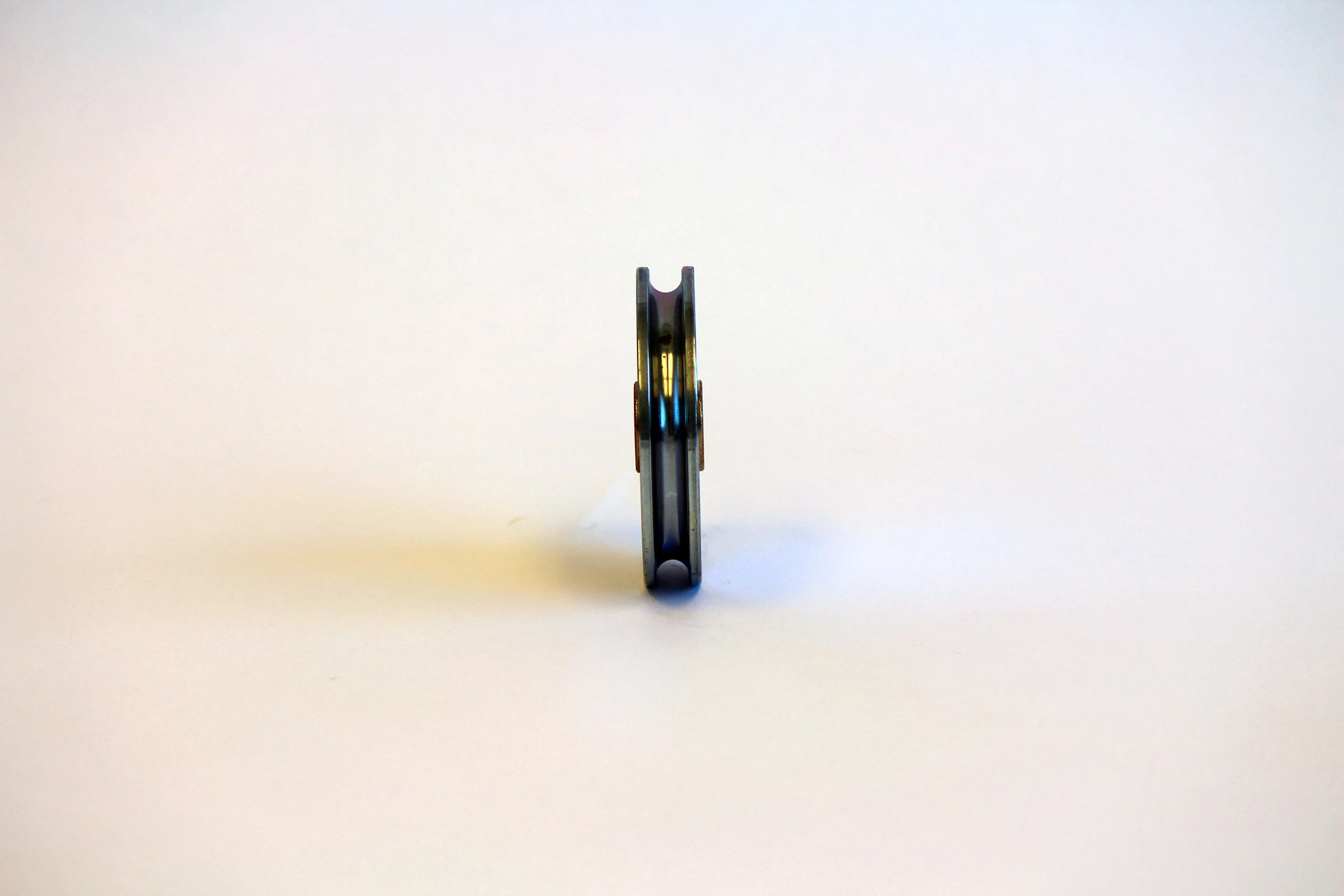

Custom Steel Sheave
3.5” x 1”
Compatible with 2.5” Pin for Sheave (CTI P/N: FLXPN25)

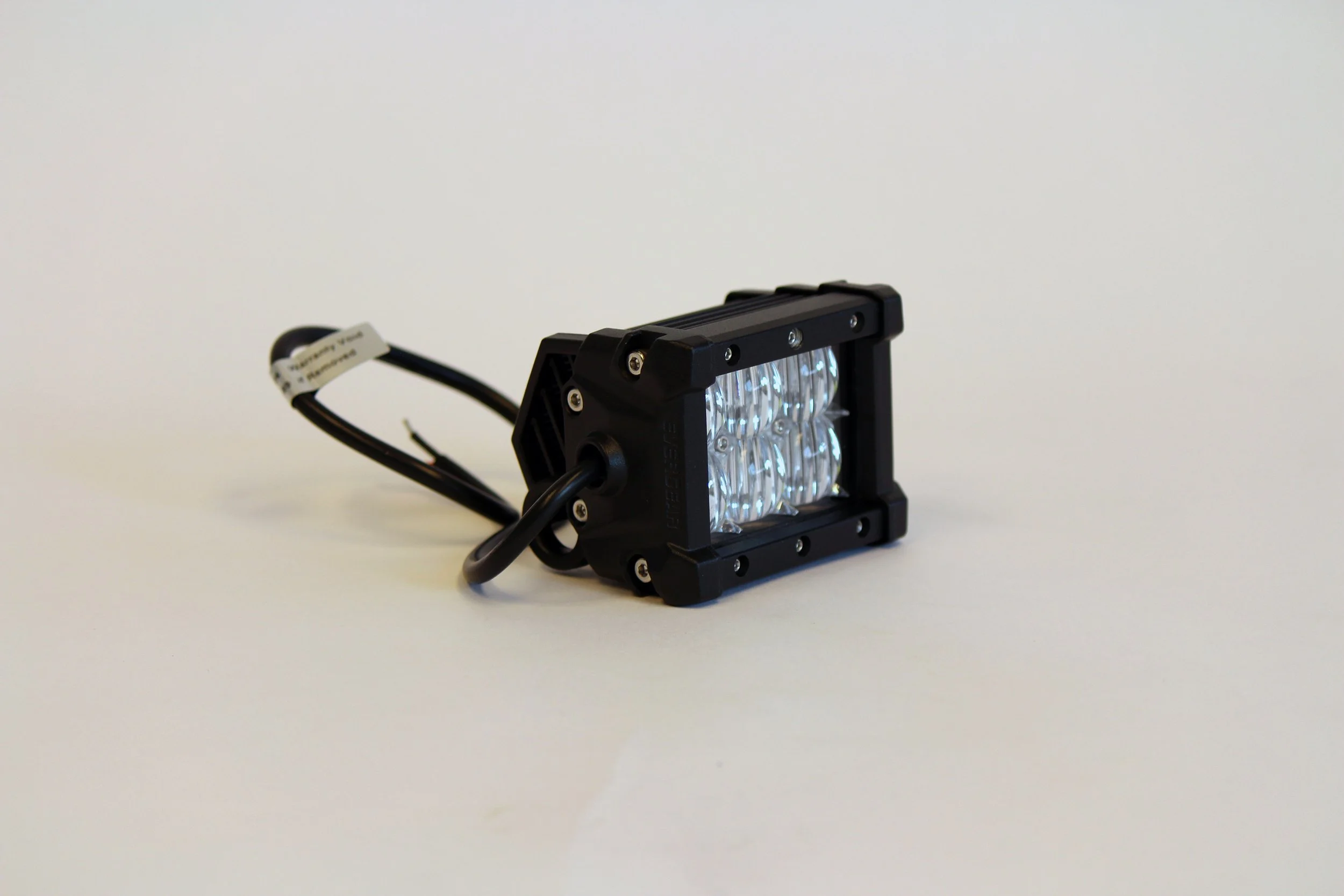

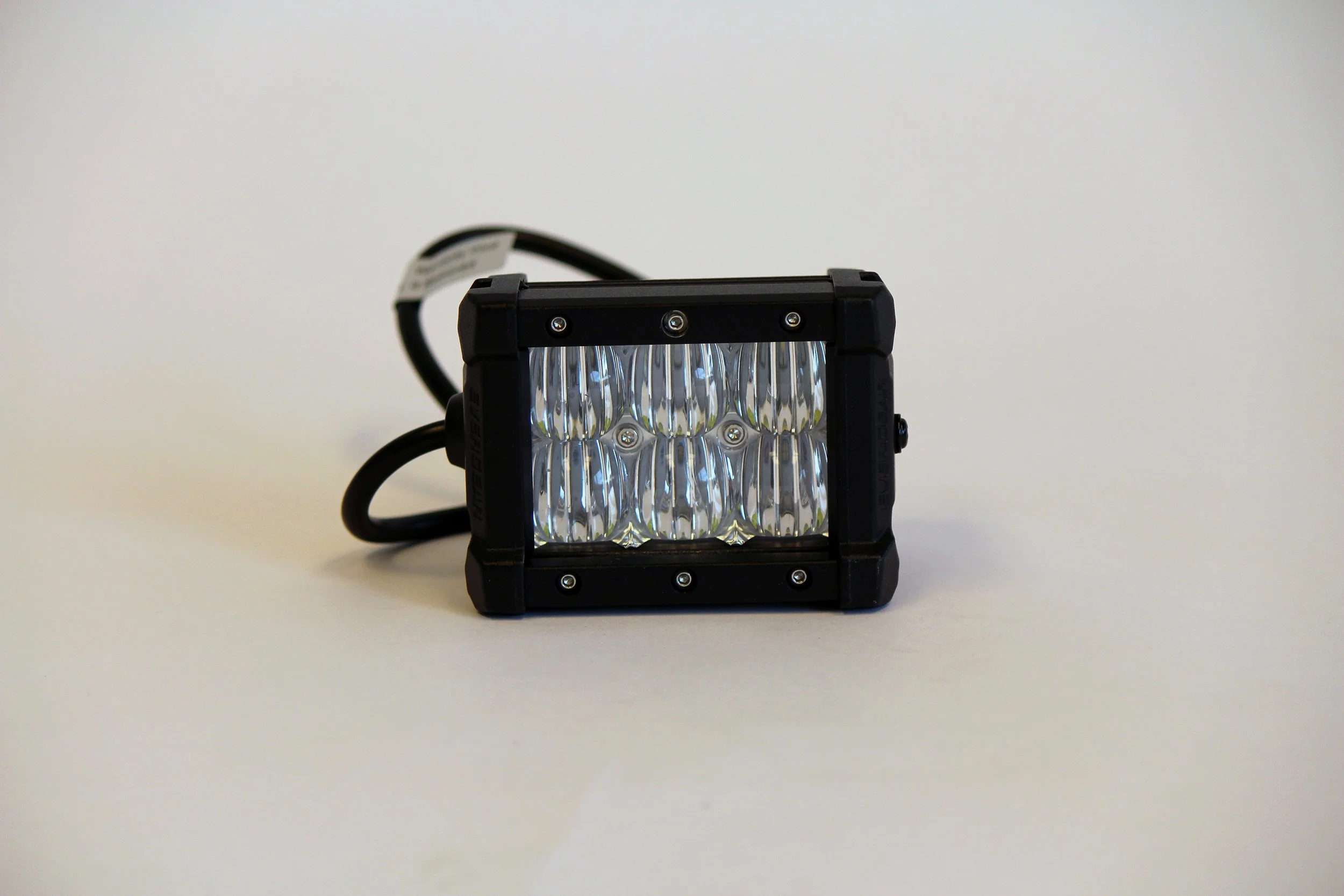

4” LED Worklight
Voltage Rating (V DC): 12
Current Rating (A): 1.5
Wattage (W): 18
Bulb Type: 3W LED
Number of LED’s: 6
Lumens Rating (lm): 1,200

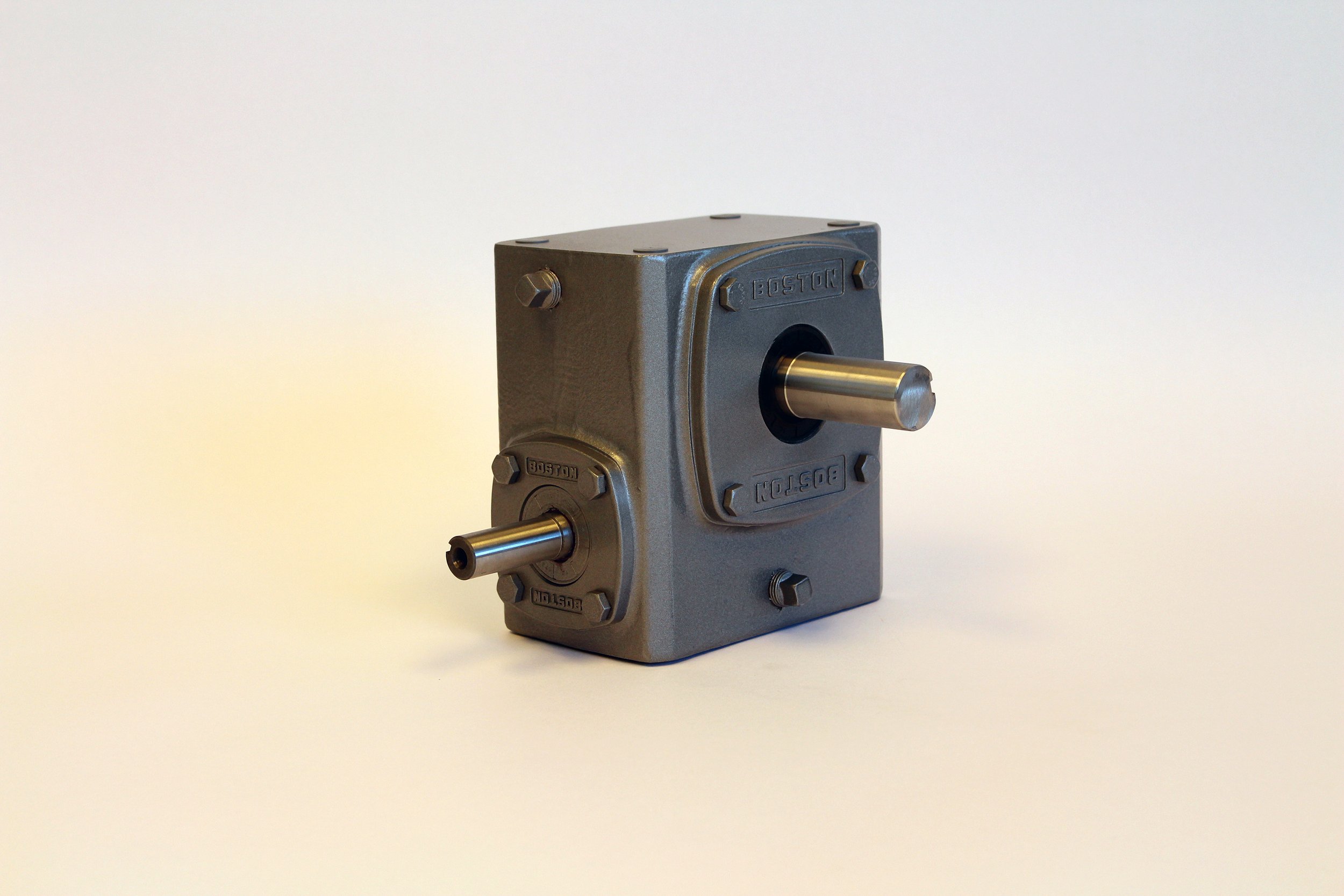

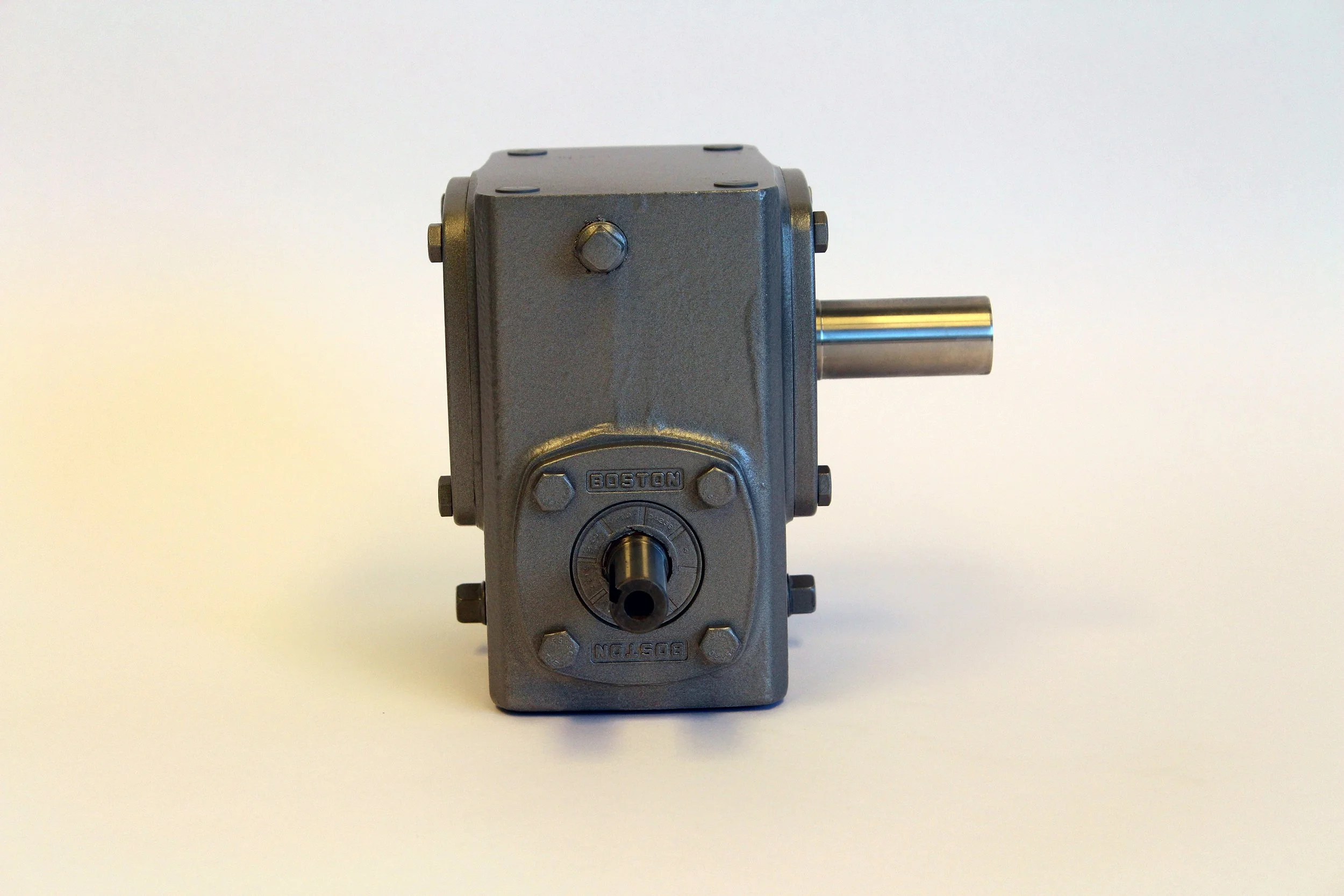

724 Gearbox
